ZD Series

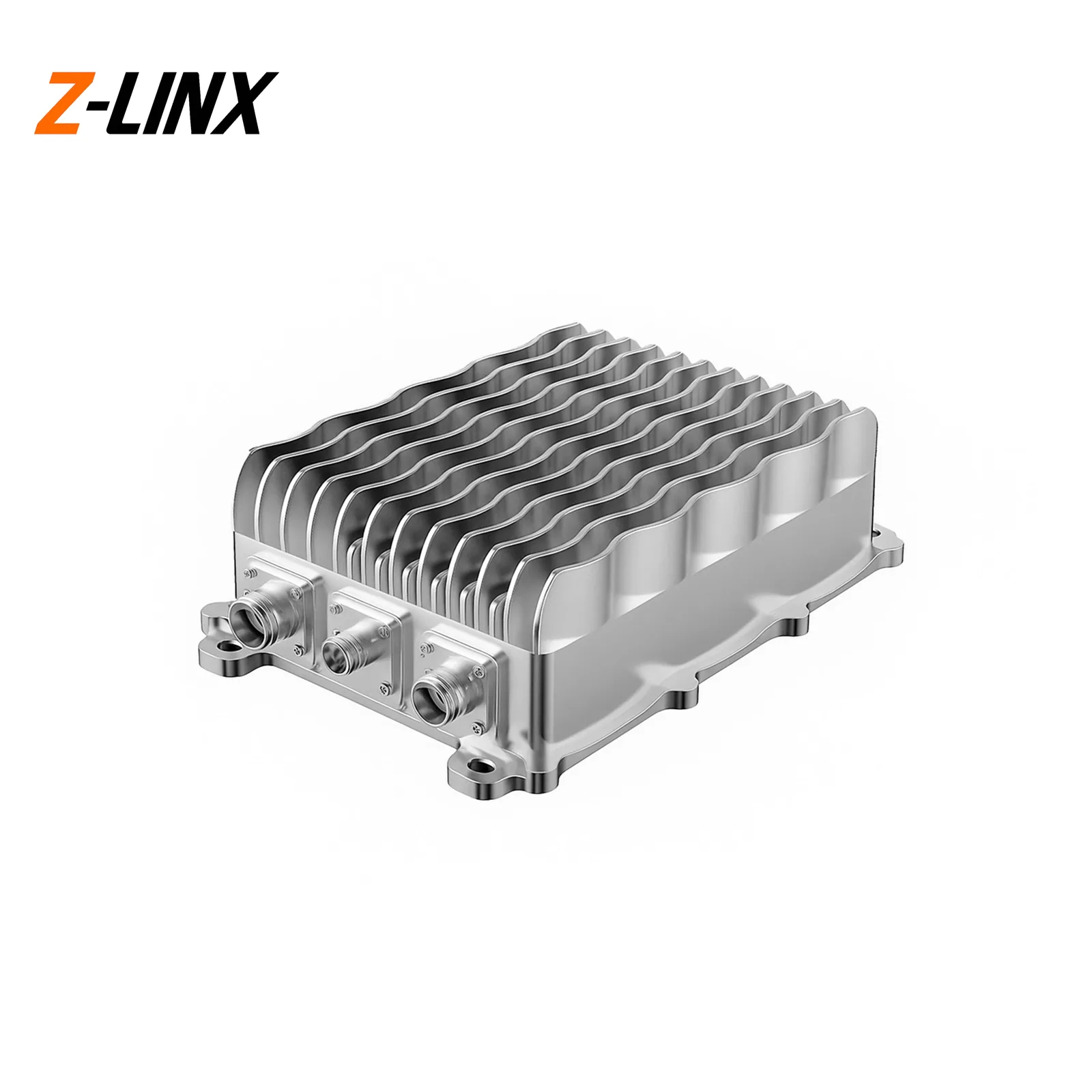

ZD-1500
ZD-1500 provides 1.5 kW output with 12V / 125A support and IP67 protection. It is designed for vehicle auxiliary power supply and low-voltage control circuits.
1.5 kW12V / 125AIP67
Product Overview
ZD-1500 provides 1.5 kW output with 12V / 125A support and IP67 protection. It is designed for vehicle auxiliary power supply and low-voltage control circuits. Input range: Customizable. Output specification: 12 Vdc / 48Vdc. Typical efficiency: Up to 94%. Communication interface: CAN 2.0B / J1939.
About the ZD Series
ZD Series provides isolated DCDC conversion for auxiliary systems. It supplies stable low-voltage power for controllers, sensors, and vehicle electronics.
Technical Specifications
| Input Voltage | Customizable |
|---|---|
| Rated Output Voltage | 12 Vdc / 48Vdc |
| Example Outputs | 12V / 125A, 48V / 30A |
| Rated Output Power | 1.5 kW |
| Efficiency | Up to 94% |
| Enclosure | IP67 rated |
| Communication | CAN 2.0B / J1939 |
| Operating Temperature | -20°C to +55°C |
| Storage Temperature | -40°C to +85°C |
| Dimensions | 230 x 150 x 65 mm |
| Weight | 3.5 kg |
