ZC-S Series

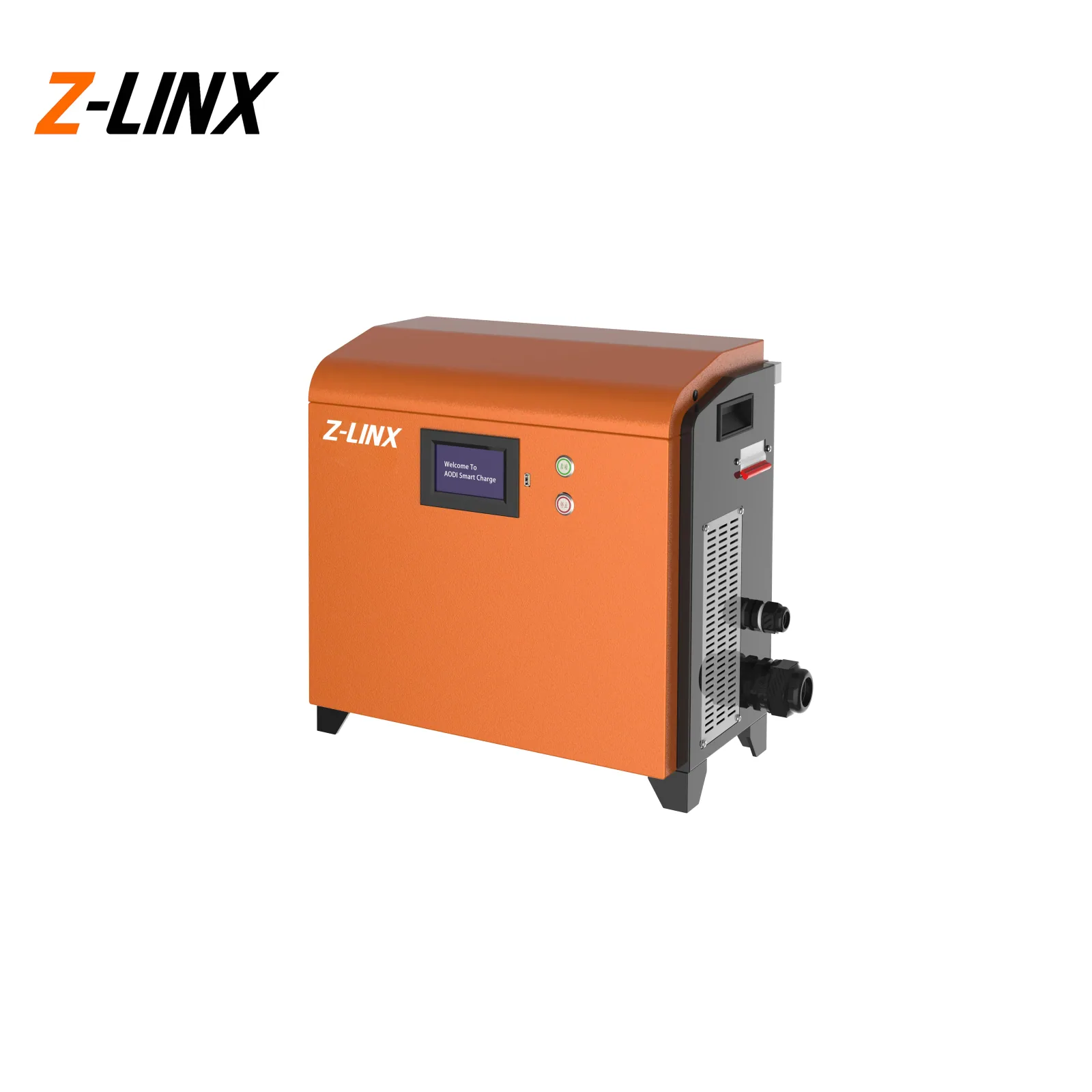

ZC-S-20K

Name: ZC-S-20K
Brand: Z-Linx
SKU: zc-s-20k
Availability: InStock
Rating: 5 (1 reviews)

ZC-S-20K provides 20 kW output with 80V / 200A support and IP54 protection. It is designed for charging depots and centralized fleet charging stations.

20 kW80V / 200AIP54

Request a Quote Technical Support

Product Overview

ZC-S-20K provides 20 kW output with 80V / 200A support and IP54 protection. It is designed for charging depots and centralized fleet charging stations. Input range: 260-530 Vac 3 phase. Output specification: 80V / 200A. Typical efficiency: Up to 95%. Communication interface: CAN 2.0B / J1939.

About the ZC-S Series

Z-Linx Stationary ZC-S Series is designed for 10 kW to 40 kW depot charging with continuous daily fleet operation.

Technical Specifications

Input Voltage	260-530 Vac 3 phase
Rated Output Voltage / Current	80V / 200A
Output Power	20 kW
Efficiency	Up to 95%
Enclosure	IP54 rated
Communication	CAN 2.0B / J1939
USB Functions	Firmware update, curve adjustment, log reading
Operating Temperature	-40°C to +55°C
Storage Temperature	-40°C to +85°C
Dimensions	500 x 467 x 242 mm
Weight	20.0 kg

OEM Procurement Signals

For sourcing teams searching stationary charger manufacturer, stationary charger supplier, and stationary charger oem, this section translates ZC-S-20K specs into procurement decision inputs.

ZC-S-20K is offered through OEM programs for teams evaluating stationary charger manufacturer and stationary charger supplier options.
Commercial intake supports stationary charger quotation and stationary charger price requests based on configuration and annual volume.
Engineering response includes stationary charger datasheet details, integration notes, and validation checkpoints.
Application focus: depot charging and fleet charging infrastructure.

Integration Checklist

Engineering teams evaluating stationary charger can protocol and stationary charger ip54 requirements can use this checklist before RFQ and pilot deployment.

Power class: 20 kW; output profile: 80V / 200A.
Input range: 260-530 Vac 3 phase; communication interface: CAN 2.0B / J1939.
Protection level: IP54 rated; suitable for stationary charger ip54 filtering workflows.
System focus: stationary charger rollout with multi-port power allocation.

Recommended Technical Paths

ZC-S-20K FAQ

How can I request stationary charger quotation for ZC-S-20K?

Use the contact page and provide target voltage, battery chemistry, annual volume, and delivery window. The team will return a project quotation for ZC-S-20K.

Can ZC-S-20K support stationary charger can protocol?

ZC-S-20K supports CAN 2.0B / J1939. Integration parameters can be aligned with your BMS and controller mapping during project review.

How do I obtain stationary charger datasheet information for engineering review?

stationary charger datasheet packages are shared through the contact workflow and include electrical characteristics, interface notes, and integration guidance.

Is stationary charger price published as a fixed list price?

No fixed list price is published. stationary charger price is provided by quotation because power level, cooling layout, and harness options differ by project.

Ready to evaluate ZC-S-20K?

Contact our team for quotation, lead time, and integration support for ZC-S-20K.

Inquire ZC-S-20K
