ZC-M Series

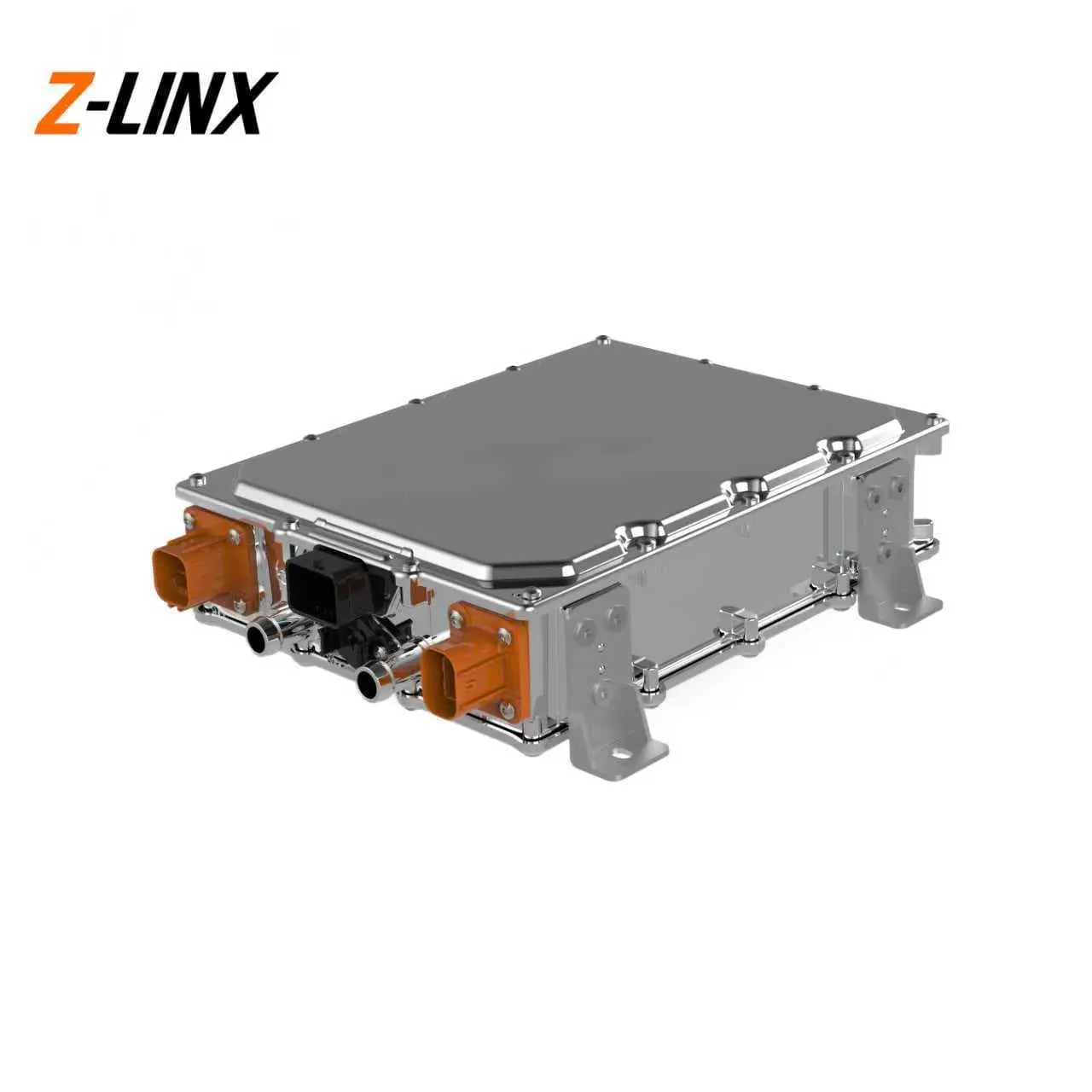

ZC-M-6.6K-W

Name: ZC-M-6.6K-W
Brand: Z-Linx
SKU: zc-m-6.6-w
Availability: InStock
Rating: 5 (1 reviews)

ZC-M-6.6K-W provides 6.6 kW output with 330V / 20A support and IP67 protection. It is designed for forklifts, utility vehicles, and medium-duty industrial equipment.

6.6 kW330V / 20AIP67

Request a Quote Technical Support

Product Overview

ZC-M-6.6K-W provides 6.6 kW output with 330V / 20A support and IP67 protection. It is designed for forklifts, utility vehicles, and medium-duty industrial equipment. Input range: 85-264 Vac. Output specification: 330V / 20A. Typical efficiency: Up to 95%. Communication interface: CAN 2.0B / J1939.

About the ZC-M Series

Z-Linx Medium-Power ZC-M Series covers 3.3 kW to 6.6 kW charging for medium-duty equipment with air-cooled and liquid-cooled options.

Technical Specifications

Input Voltage	85-264 Vac
Output Voltage / Current	330V / 20A
Output Power	6.6 kW
Efficiency	Up to 95%
Enclosure	IP67 rated
Communication	CAN 2.0B / J1939
USB Functions	Firmware update, curve adjustment, log reading
Operating Temperature	-40°C to +65°C
Storage Temperature	-40°C to +85°C
Dimensions	280 x 202 x 70 mm
Weight	8 kg

OEM Procurement Signals

For sourcing teams searching on-board charger manufacturer, on-board charger supplier, and on-board charger oem, this section translates ZC-M-6.6K-W specs into procurement decision inputs.

ZC-M-6.6K-W is offered through OEM programs for teams evaluating on-board charger manufacturer and on-board charger supplier options.
Commercial intake supports on-board charger quotation and on-board charger price requests based on configuration and annual volume.
Engineering response includes on-board charger datasheet details, integration notes, and validation checkpoints.
Application focus: medium-duty utility vehicle and forklift programs.

Integration Checklist

Engineering teams evaluating on-board charger can protocol and on-board charger ip67 requirements can use this checklist before RFQ and pilot deployment.

Power class: 6.6 kW; output profile: 330V / 20A.
Input range: 85-264 Vac; communication interface: CAN 2.0B / J1939.
Protection level: IP67 rated; suitable for on-board charger ip67 filtering workflows.
System focus: air-cooled or liquid-cooled charger integration with powertrain control.

Recommended Technical Paths

ZC-M-6.6K-W FAQ

How can I request on-board charger quotation for ZC-M-6.6K-W?

Use the contact page and provide target voltage, battery chemistry, annual volume, and delivery window. The team will return a project quotation for ZC-M-6.6K-W.

Can ZC-M-6.6K-W support on-board charger can protocol?

ZC-M-6.6K-W supports CAN 2.0B / J1939. Integration parameters can be aligned with your BMS and controller mapping during project review.

How do I obtain on-board charger datasheet information for engineering review?

on-board charger datasheet packages are shared through the contact workflow and include electrical characteristics, interface notes, and integration guidance.

Is on-board charger price published as a fixed list price?

No fixed list price is published. on-board charger price is provided by quotation because power level, cooling layout, and harness options differ by project.

Ready to evaluate ZC-M-6.6K-W?

Contact our team for quotation, lead time, and integration support for ZC-M-6.6K-W.

Inquire ZC-M-6.6K-W
