ZC-L Series

ZC-L-2000

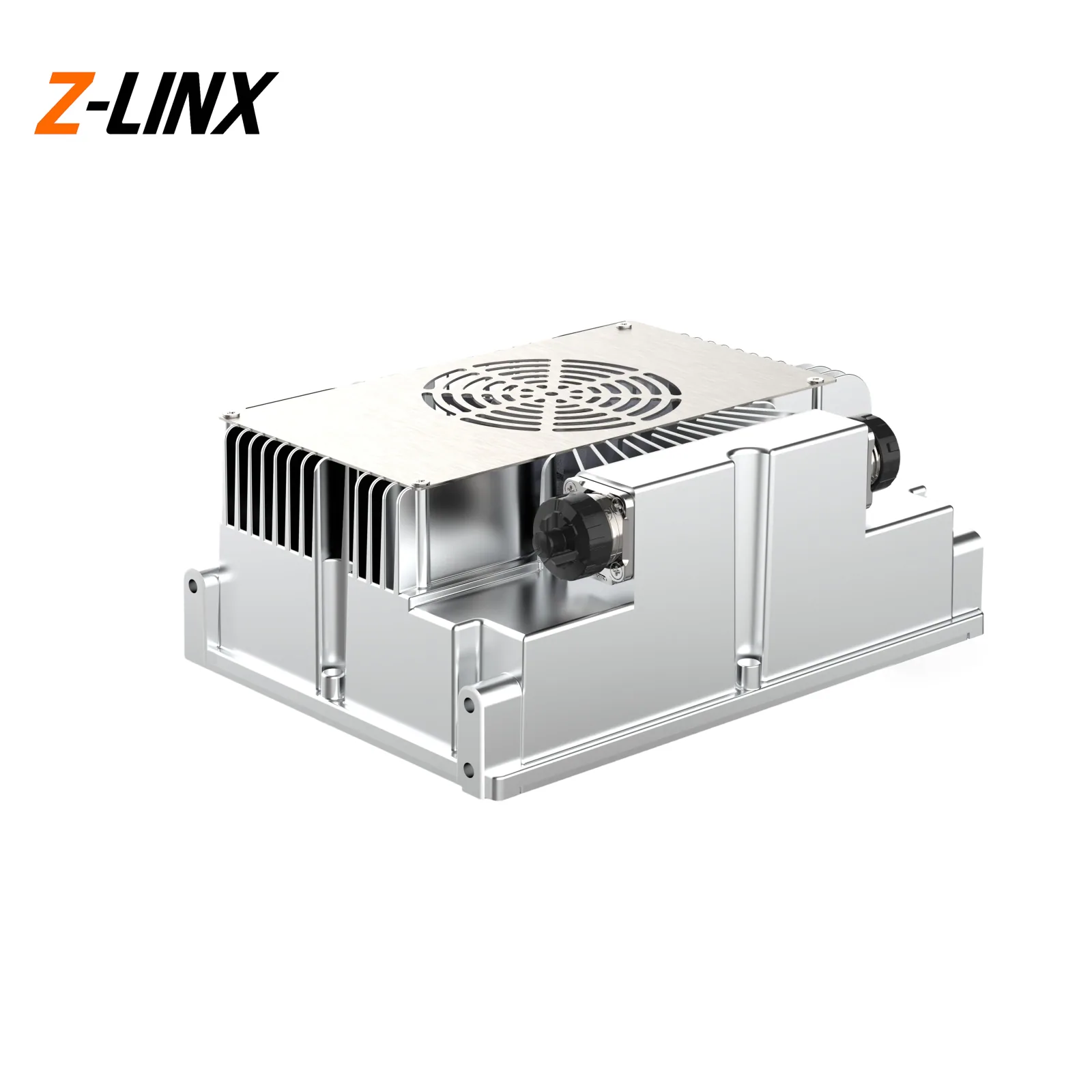

Name: ZC-L-2000
Brand: Z-Linx
SKU: zc-l-2000
Availability: InStock
Rating: 5 (1 reviews)

ZC-L-2000 provides 2.0 kW output with 48/60/72/84 Vdc support and IP67 protection. It is designed for golf carts, sweepers, and light-duty industrial vehicles.

2.0 kW48/60/72/84 VdcIP67

Request a Quote Technical Support

Product Overview

ZC-L-2000 provides 2.0 kW output with 48/60/72/84 Vdc support and IP67 protection. It is designed for golf carts, sweepers, and light-duty industrial vehicles. Input range: 85-264 Vac. Output specification: 48 Vdc, 60 Vdc, 72 Vdc, 84 Vdc. Typical efficiency: Up to 94%. Communication interface: CAN 2.0B / J1939, USB.

About the ZC-L Series

Z-Linx Lite-Power ZC-L Series supports 400 W to 2.0 kW on-board charging for compact electric vehicles and light industrial equipment.

Technical Specifications

USB Functions	firmware programming, curve customization, log retrieval
Input Voltage	85-264 Vac
Output Voltage Options	48 Vdc, 60 Vdc, 72 Vdc, 84 Vdc
Example Outputs	48V / 40A, 60V / 30A, 72V / 25A, 84V / 20A
Output Power	2.0 kW
Efficiency	Up to 94%
Enclosure	IP67 rated
Communication	CAN 2.0B / J1939, USB
Operating Temperature	-40°C to +55°C
Storage Temperature	-40°C to +85°C
Dimensions	250 x 160 x 120 mm
Weight	5 kg

OEM Procurement Signals

For sourcing teams searching on-board charger manufacturer, on-board charger supplier, and on-board charger oem, this section translates ZC-L-2000 specs into procurement decision inputs.

ZC-L-2000 is offered through OEM programs for teams evaluating on-board charger manufacturer and on-board charger supplier options.
Commercial intake supports on-board charger quotation and on-board charger price requests based on configuration and annual volume.
Engineering response includes on-board charger datasheet details, integration notes, and validation checkpoints.
Application focus: micro mobility and light industrial vehicle programs.

Integration Checklist

Engineering teams evaluating on-board charger can protocol and on-board charger ip67 requirements can use this checklist before RFQ and pilot deployment.

Power class: 2.0 kW; output profile: 48/60/72/84 Vdc.
Input range: 85-264 Vac; communication interface: CAN 2.0B / J1939, USB.
Protection level: IP67 rated; suitable for on-board charger ip67 filtering workflows.
System focus: compact charger integration with BMS, CAN diagnostics, and IP-rated installation.

Recommended Technical Paths

ZC-L-2000 FAQ

How can I request on-board charger quotation for ZC-L-2000?

Use the contact page and provide target voltage, battery chemistry, annual volume, and delivery window. The team will return a project quotation for ZC-L-2000.

Can ZC-L-2000 support on-board charger can protocol?

ZC-L-2000 supports CAN 2.0B / J1939, USB. Integration parameters can be aligned with your BMS and controller mapping during project review.

How do I obtain on-board charger datasheet information for engineering review?

on-board charger datasheet packages are shared through the contact workflow and include electrical characteristics, interface notes, and integration guidance.

Is on-board charger price published as a fixed list price?

No fixed list price is published. on-board charger price is provided by quotation because power level, cooling layout, and harness options differ by project.

Ready to evaluate ZC-L-2000?

Contact our team for quotation, lead time, and integration support for ZC-L-2000.

Inquire ZC-L-2000
