ZC-H Series

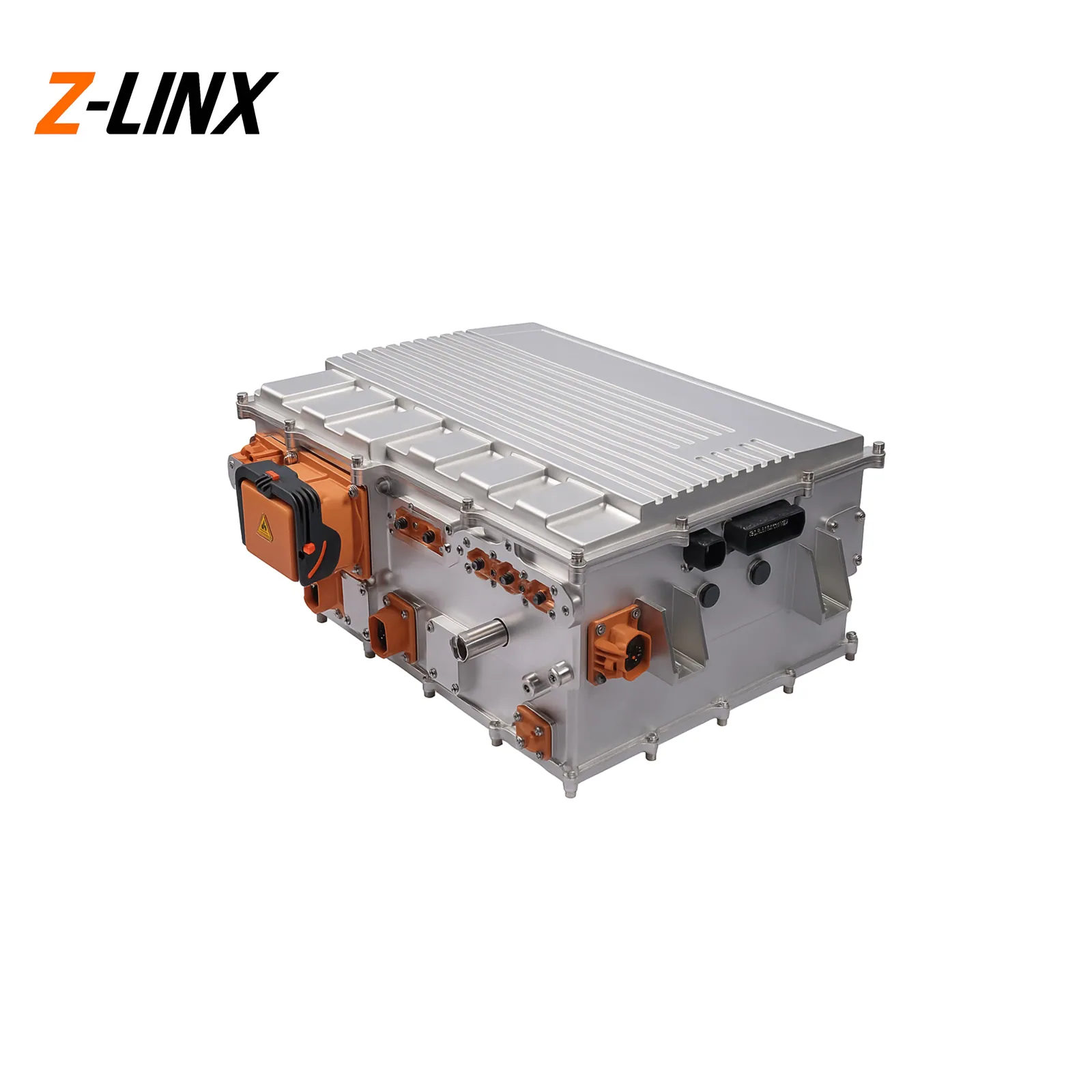

ZC-H-22K

Name: ZC-H-22K
Brand: Z-Linx
SKU: zc-h-22k
Availability: InStock
Rating: 5 (1 reviews)

ZC-H-22K provides 22 kW output with 330V / 60A support and IP67 protection. It is designed for heavy-duty electric vehicles and High-Power industrial platforms.

22 kW330V / 60AIP67

Request a Quote Technical Support

Product Overview

ZC-H-22K provides 22 kW output with 330V / 60A support and IP67 protection. It is designed for heavy-duty electric vehicles and High-Power industrial platforms. Input range: 260-530 Vac 3 phase. Output specification: 330V / 60A. Typical efficiency: Up to 95%. Communication interface: CAN 2.0B / J1939.

About the ZC-H Series

Z-Linx High-Power ZC-H Series provides 11 kW and 22 kW charging for heavy-duty platforms requiring faster replenishment and deeper integration.

Technical Specifications

Input Voltage	260-530 Vac 3 phase
Rated Output Voltage / Current	330V / 60A
Output Power	22 kW
Efficiency	Up to 95%
Enclosure	IP67 rated
Communication	CAN 2.0B / J1939
USB Functions	Firmware update, curve adjustment, log reading
Operating Temperature	-40°C to +60°C
Storage Temperature	-40°C to +85°C
Dimensions	450 x 280 x 120 mm
Weight	14.5 kg

OEM Procurement Signals

For sourcing teams searching high-power on-board charger manufacturer, high-power on-board charger supplier, and high-power on-board charger oem, this section translates ZC-H-22K specs into procurement decision inputs.

ZC-H-22K is offered through OEM programs for teams evaluating high-power on-board charger manufacturer and high-power on-board charger supplier options.
Commercial intake supports high-power on-board charger quotation and high-power on-board charger price requests based on configuration and annual volume.
Engineering response includes high-power on-board charger datasheet details, integration notes, and validation checkpoints.
Application focus: High-Power commercial EV and heavy industrial platforms.

Integration Checklist

Engineering teams evaluating high-power on-board charger can protocol and high-power on-board charger ip67 requirements can use this checklist before RFQ and pilot deployment.

Power class: 22 kW; output profile: 330V / 60A.
Input range: 260-530 Vac 3 phase; communication interface: CAN 2.0B / J1939.
Protection level: IP67 rated; suitable for high-power on-board charger ip67 filtering workflows.
System focus: high-voltage charging architecture with DCDC and distribution modules.

Recommended Technical Paths

ZC-H-22K FAQ

How can I request high-power on-board charger quotation for ZC-H-22K?

Use the contact page and provide target voltage, battery chemistry, annual volume, and delivery window. The team will return a project quotation for ZC-H-22K.

Can ZC-H-22K support high-power on-board charger can protocol?

ZC-H-22K supports CAN 2.0B / J1939. Integration parameters can be aligned with your BMS and controller mapping during project review.

How do I obtain high-power on-board charger datasheet information for engineering review?

high-power on-board charger datasheet packages are shared through the contact workflow and include electrical characteristics, interface notes, and integration guidance.

Is high-power on-board charger price published as a fixed list price?

No fixed list price is published. high-power on-board charger price is provided by quotation because power level, cooling layout, and harness options differ by project.

Ready to evaluate ZC-H-22K?

Contact our team for quotation, lead time, and integration support for ZC-H-22K.

Inquire ZC-H-22K
